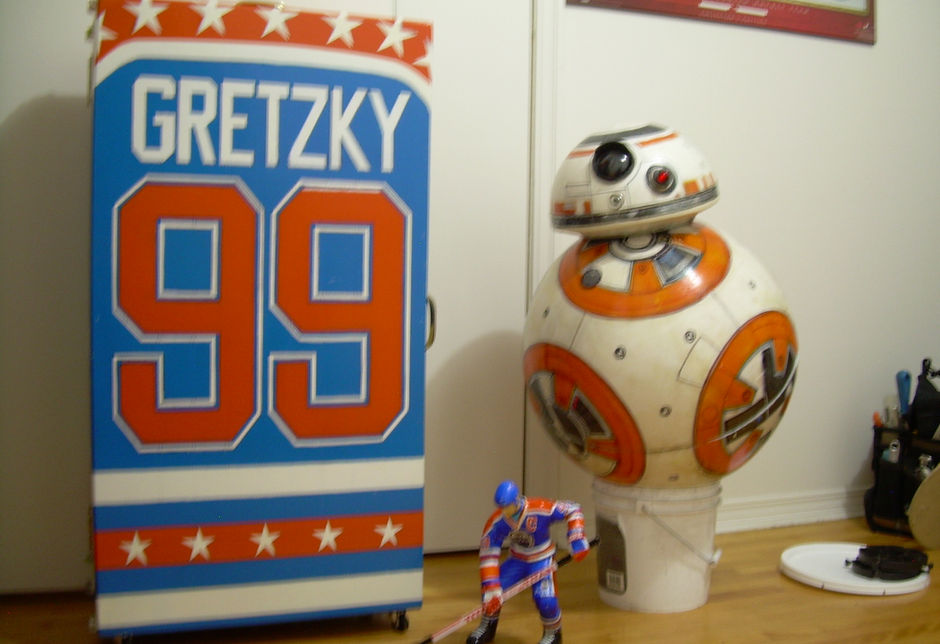

BB8 LIFESIZE DROID

                      (SemiAutonomous)

                                 *Current Work in Progress*



                      BUILD BREAKDOWN

BODY & HEAD DESIGN CONSTRUCTION:

  • Built, sculpted, fabricated & constructed completely out of fiberglass and foam (Head) for lightweight functionality. Rare Earth Magnets for head-spinning, static stability, and movement outside of Body Sphere

HEAD (interior electronic components):

  • Head designed & constructed with exterior LED spotlight through glass (static white, Static red spotlight, and flashing red spotlight)

  • Interior Microsoft 'EYE' 720p HD USB web camera viewing through phone for RC guidance

  • Interior Bluetooth voice speaker with a custom-built speaker housing

PAINT:

  • Custom designed paint-scheme (based off accessible movie still frames and templates)

  • Embedded silver metal foil leaf for weathered wear authentic look

  • Custom hand/Dremel die-cutting and sculpting embossing and relief for authentic droid metal paneling look

BODY, DRIVE, AND APPARATUS:

  • Custom designed and built droid inner drive apparatus and custom-designed interior body Aluminum Indo-skeleton.

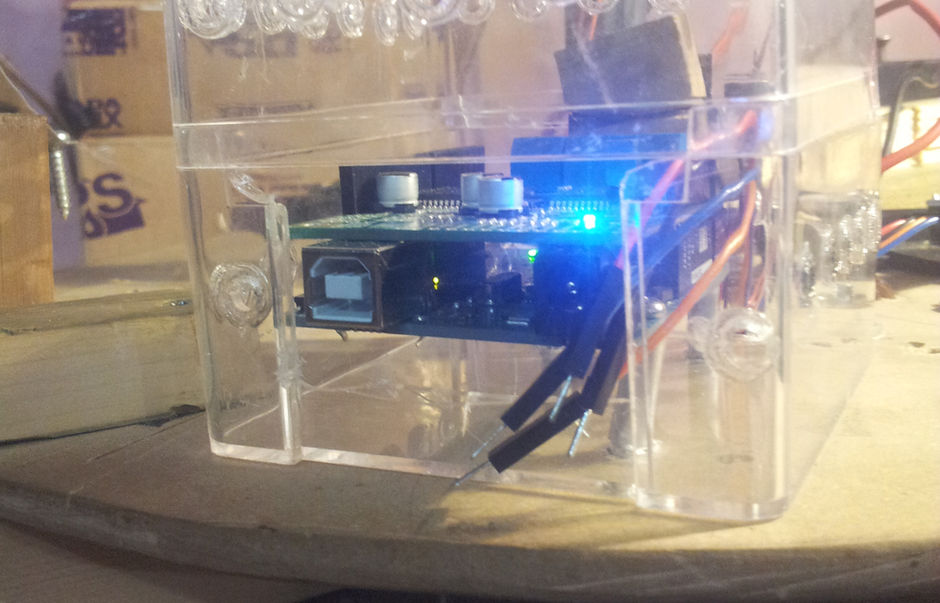

  • Arduino UNO electronic micro board with Pololulu Motor Drive Shield, numerous servos for head-spinning control, with 12-volt (rechargeable) battery-powered, with Arduino Bluetooth (BB8 movie quotes) via Android phone Radio and voice control.



  • *Note - Ran into a few issues with Pololulu Motor Drive shield powering, and  currently re-working  internal drive apparatus power design to be more durable and more intuitive

 WAYNE GRETZKY'S ALL-STAR HOCKEY        CASE BUILD

                  ***Current work in Progress***

     BUILD DESIGN BREAKDOWN

  • Design and build based on the physical dimension' of "Wayne Gretzky's All-Star" (Table Top Hockey)

  • Cut, built, sculpted, fabricated & constructed completely out of wood, steel tie plates, brass hinges, locking clasps, locks, and handles for lightweight functionality

  • ***Currently, in the process of final clean up of line/ spray masking & accenting with final clear coat finish
